2-Phase-Hollow Shaft Stepper Motor-Shenzhen Instar Electromechanical Technology Development Co., Ltd.

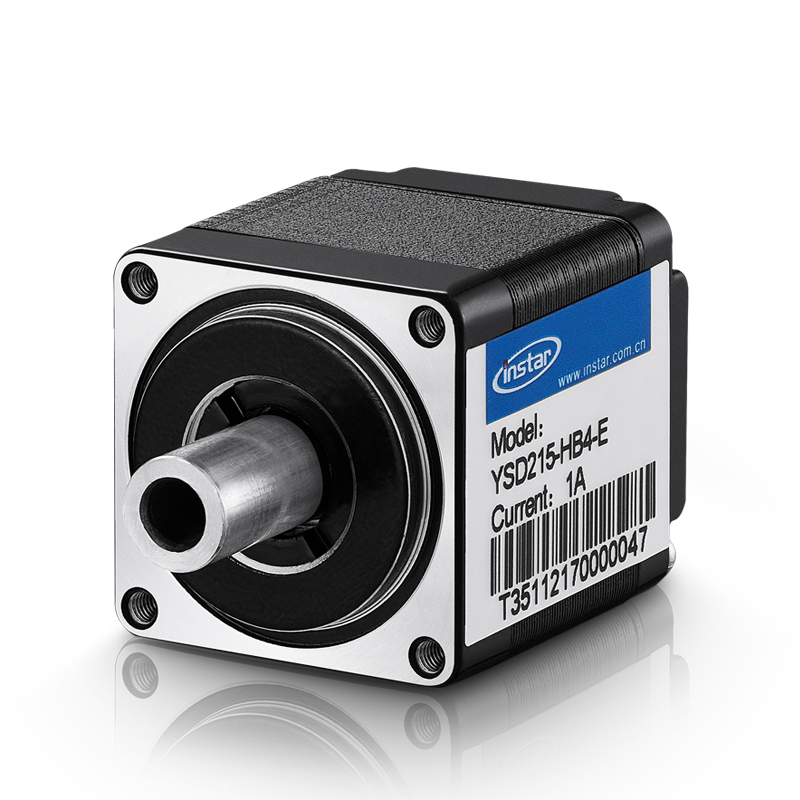

□28mm Hollow Shaft Stepper Motor
- Description
- Technical data
Instar provides stepper motors with a size of 28mm hollw shaft. Hollow stepper motors are used to lay cables or pass laser beams and install suction cups to save space.

→ Size：

28mm

→ NEMA：

11

→ Holding Torque：

0.3kg-cm～1kg-cm

→ Current per Winding：

0.67A

→ Lead：

4、6 Lead

→ Length：

28mm～51mm

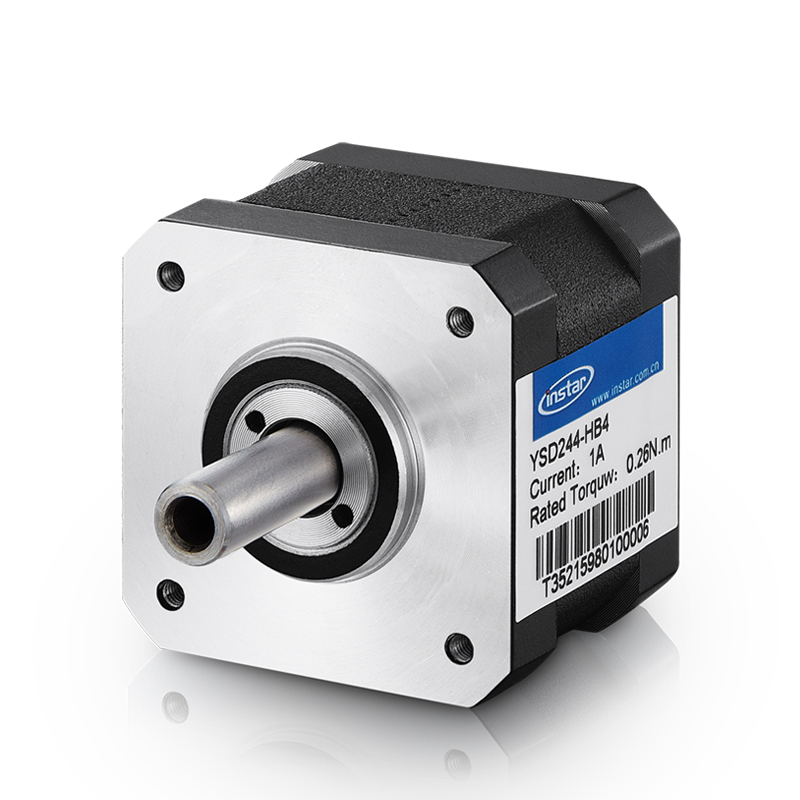

□42mm Hollow Shaft Stepper Motor
- Description
- Technical data
Instar offers stepper motors with a size of 42mm hollow shaft. Hollow stepper motors are used to lay cables or pass laser beams and mount suction cups to save space.

→ Size：

42mm

→ NEMA：

17

→ Holding Torque：

1.6kg-cm～7kg-cm

→ Current per Winding：

0.95A～2A

→ Lead：

4、6 Lead

→ Length：

33mm～59mm

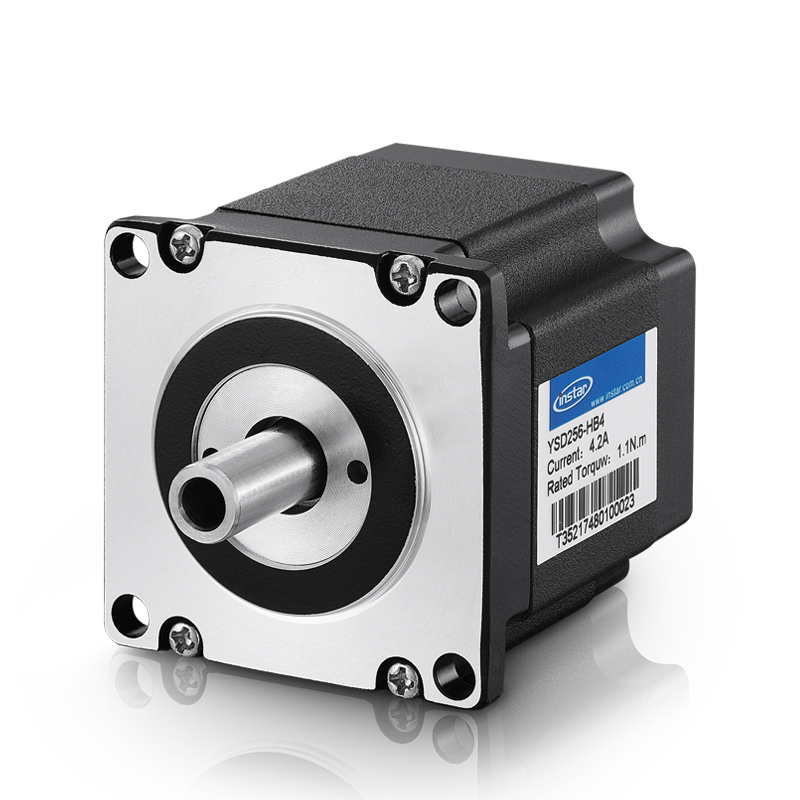

□56mm Hollow Shaft Stepper Motor
- Description
- Technical data
Instar offers hollow stepper motors with a size of 56mm. Hollow stepper motors are used to lay cables or pass laser beams and install suction cups to save space.

→ Size：

56mm

→ NEMA：

23

→ Holding Torque：

3.9kg-cm～22kg-cm

→ Current per Winding：

2A～4.2A

→ Lead：

4、6 Lead

→ Length：

41mm～80mm

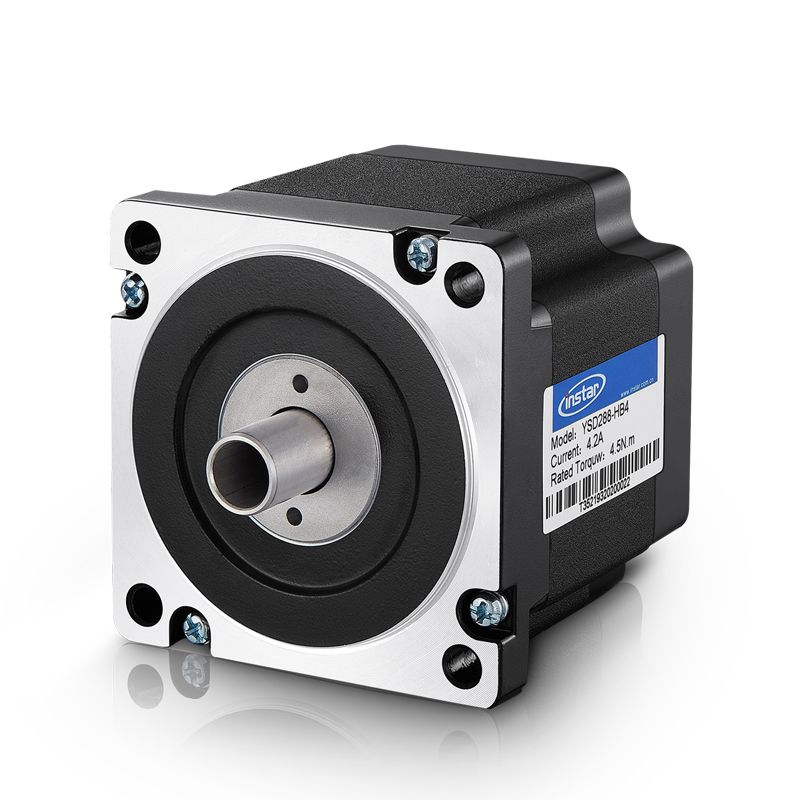

□85mm Hollow Shaft Stepper Motor
- Description
- Technical data
Instar offers hollow stepper motors with a size of 85mm. Hollow stepper motors are used to lay cables or pass laser beams and install suction cups to save space.

→ Size：

85mm

→ NEMA：

34

→ Holding Torque：

34kg-cm～120kg-cm

→ Current per Winding：

4A～6A

→ Lead：

8 Lead

→ Length：

65mm～156mm
